Our press brake mould is specially produced after the quenching and grinding of high standard, and the dimensional tolerances of all the key parts processed achieve high accuracy, thus ensuring optimum bending effects. The choice of our precision bending mold can avoid the correction error and a secondary operation, which reduces the processing costs of the mold. In addition, the service life of Henglida mold after heat treatment is more lasting than the ordinary one. According to different requirements of the customer, we can provide the ideal mold design with high quality and fast speed.

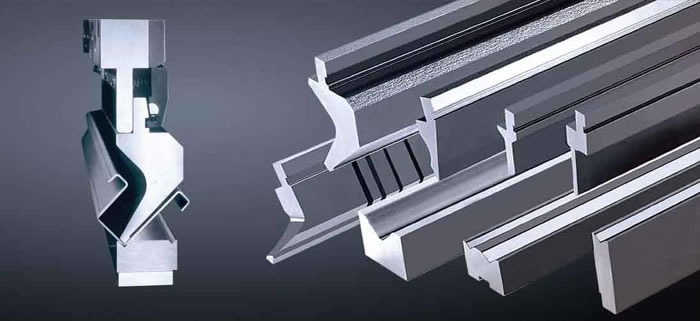

The press brake tooling is widely applicable to various types of international L.V.D. CNC bending machine, AMADA CNC bending machine, TRUMPF and FINN-POWER CNC bending machine, as well as domestic CNC bending machine. We currently have the segment differential mold, concentric bottom mold, the upper and lower die, as well as the composite forming die for the bending machine. In recent years, we have introduced a number of precision CNC machining equipment and obtained 24 national utility model patents. This allows us to produce the press brake mould with a length of lower than 6 meters. We can also provide special-purpose mold, including elbow mold, knife-shaped mold, 90°, 60°, 45°, 30° mold, R-shaped, cylindrical, U-shaped mold, pressure die, container mold, light pole die, and so on. Apart from our standard products available from stock, processing with supplied drawings and design for non-standard products are available in our company.

Top and Bottom Moulds

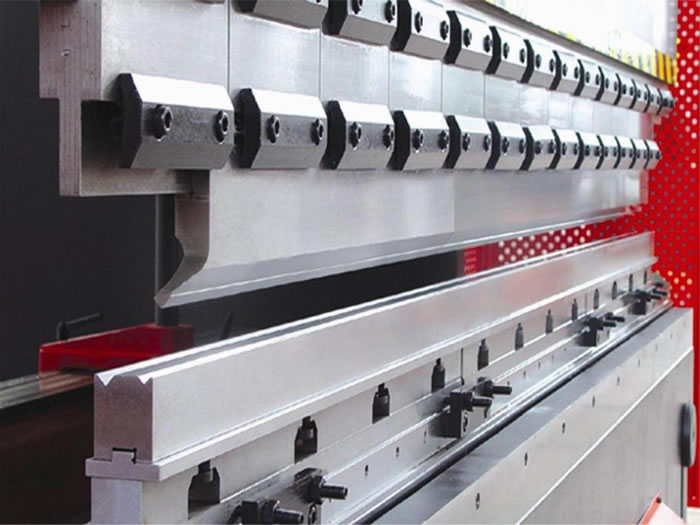

The press brake mould is divided into top and bottom moulds for sheet metal stamping and separating. The mold used for stamping has the cavity, while the mold for separating has the cutting edge.
Mold material: Cr12Mo1v1, 42CrMo, T10a
Standard length: 835mm, 800mm, 550mm
Common sectional specification:
Mold segment 1

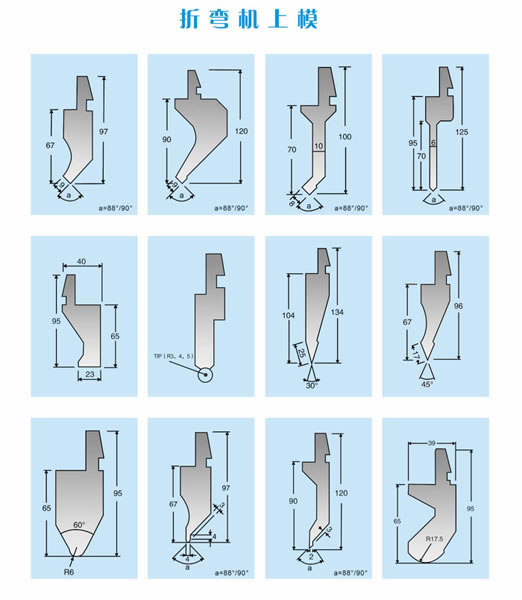

CNC bending top mold: 100 (left), 10,15,20,40,50,200,300,100 (right) = 835mm

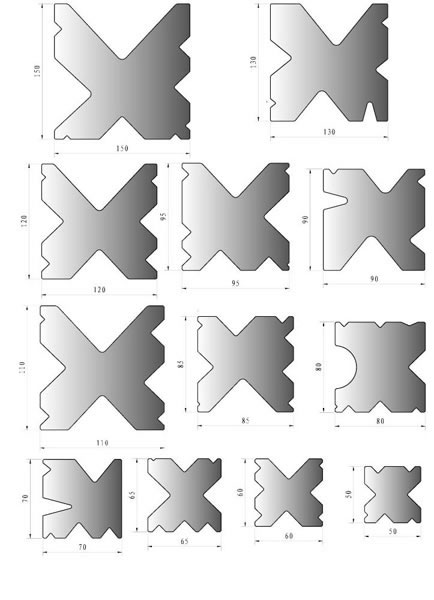

CNC bending bottom mold: 10,15,20,40,50,100,200,400 = 835mm
Mold segment 2
CNC bending top mold: 100 (left), 10,15,20,40,50,165,300,100 (right) = 800mm

Henglida is a professional press brake mould manufacturer and supplier in China. Our company offers a wide range of products, including CNC die mold, shear blade, paper making machine knife, rubber cutting knife, and more.
