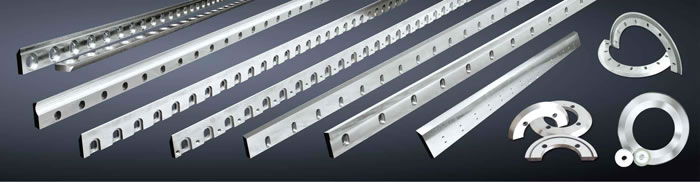

The corrugated knife includes slitter blade, slotter blade, crosscut blade with inserted SKH51 high speed steel, copper conduction paper cutter, thin blade, single-edged blade, toothed cutter, etc. We can provide various types of carton paper slitter blades, triple, quadruple slotter blades, as well as thin blades suitable for production lines, etc.

Henglida thin blade is able to ensure flat edge, brightness and cleanliness, and non-flattening phenomenon of the split cardboard, thus improving its overall quality and appearance. This also particularly brings about fundamental improvement on the quality of the next printing process. It is available in the materials of T8A, T1OA, GCr15, 9CrSi, Crl2MoV, W6Mo5Cr4V2, etc.

Slitter Blade

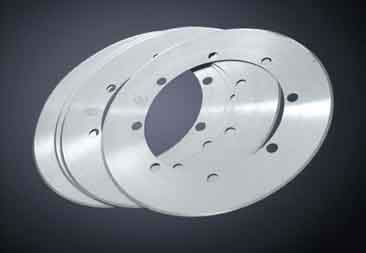

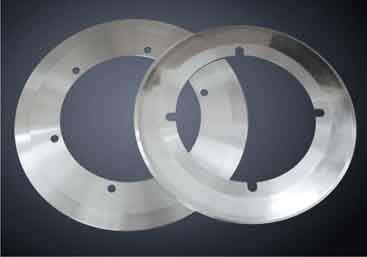

The single-edged slitter blade is manufactured by using high quality steel materials like high-speed steel and tungsten steel, as well as a series of advanced equipment, thus ensuring a high accuracy up to ± 0.003mm. Due to special diamond and cubic boron nitride grinding wheels, the corrugated knife enjoys high hardness, wear resistance, and durability. With a thickness of no more than 1.5CM, it achieves smooth and flat edge of the slit wrapping paper and corrugated paper. This greatly improves the cutting quality and efficiency.

Common Specifications in China (mm)
Φ200*Φ122*1.3
Φ230*Φ110*1.4
Φ230*Φ130*1.4
Φ250*Φ105*1.4
Φ250*Φ130*1.4
Φ250*Φ140*1.4
Φ260*Φ112*1.4
Φ260*Φ114*1.4
Φ260*Φ140*1.4
Φ260*Φ158*1.4
Φ260*Φ168.3*1.4
Φ270*Φ168.3*1.4
Φ270*Φ170*1.4
Φ280*Φ168*1.4
Φ290*Φ168*1.4

Common Specifications in other Countries (mm)
OEM:             Dimension:
TCY              Φ300*Φ122*1.2
Mitsubishi   Φ280*Φ202*1.4
Mitsubishi   Φ291*Φ203*1
Marquip       Φ260*Φ168.3*1.2
Isowa          Φ260*Φ140*1.5
Peters         Φ250*Φ150*0.8
BHS             Φ240*Φ32*1.2
Agnati          Φ240*Φ115*1
Agnati          Φ220*Φ115*1
Fosber        Φ230*Φ135*1.1
Fosber        Φ230*Φ110*1.1

Slotter Blade

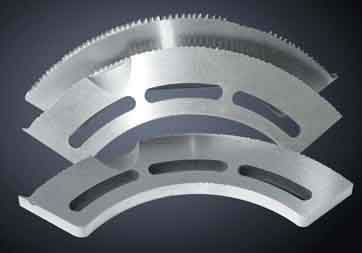

The slotter blade includes the upper and lower cutting blades. For the commonly used upper part, it has arc-shaped blade as well as arc-shaped and serrated blade two kinds. For the lower part, it has semicircular acute angle blade, right angle blade, and groove width retaining ring. This corrugated knife is produced in strict accordance with the national quality standards, with the forged steel product achieving compact internal structure and excellent crystalline phase. Given full consideration to avoid quenching cracks and other defects in the heat treatment process, the service life of slotter blade is extended.

Our company is a professional corrugated knife manufacturer and supplier in China. We provide a broad range of products, including paper cutting knife, press brake mould, shaped machine knife, shear blade, and more.
