Paper Making Machine Knife

Home » Products » Paper Making and Paper Processing Knife » Paper Making Machine Knife
Paper Making Machine Knife Paper Making Machine Knife Paper Making Machine Knife Paper Making Machine Knife Paper Making Machine Knife

The paper making machine knife is extensively used in paper pulp making, raw paper production and subsequent paper processing. As China's largest machinery blade manufacturer, we can provide many affordable and superior round and straight blades through our strict quality control and continuous research. For example, the slitter blade, rewinder blade, dished blade, multi-edge blade, crosscut blade, scraper, coating blade, slicing blade and other types are all available.

Our cutting tool is suitable for cutting logs, softwood, and mixed tropical hardwood in the manufacture high-quality pulp. It is well known that is fine particle size and accurate cutting dimension are the basic requirement in the production of pulp. As the tool performance is an important factor in any cutting operation, the machine knife is made of high quality raw materials, and processed with appropriate hardness as well as high wear resistance and impact strength. Based on our engineers with decades of rich experience, advanced manufacturing process and considerate after-sales service, we can meet cutting needs of customers both at home and abroad.

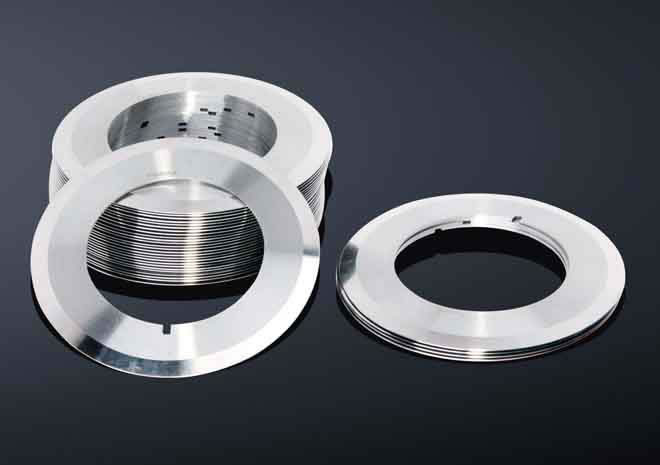

Upper Slitter Blade
The upper slitting blade, combined with the lower blade, can be applied to the cutting of roll adhesive sticker, silicone paper, label paper, non-woven fabric, toilet paper, adhesive tape, aluminum foil, film, kraft paper, etc. It comes with sharp cutting edge, good abrasion resistance, small cutting resistance, and a high cutting accuracy of up to 0.003mm. It is available in the materials of 9CrSi, Cr12MoV, W6Mo5Cr4v2, and so on.

Paper Making Machine Knife

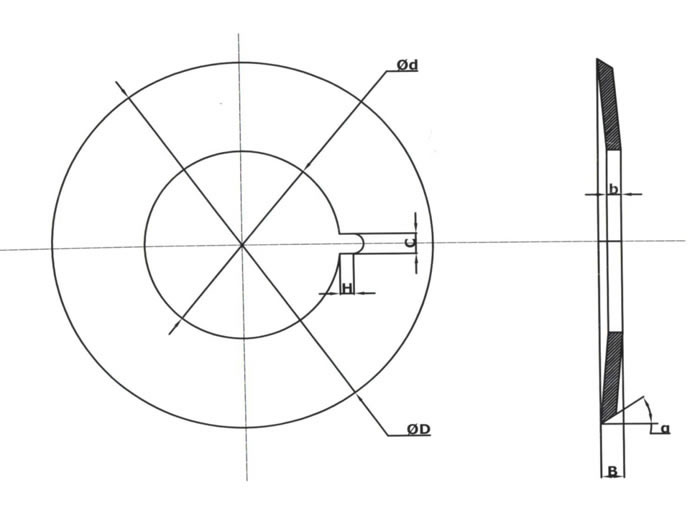

Specification (mm) Outer Diameter φD (mm)Inner Diameter φd (mm)Width C (mm) Depth H (mm) Knife-Edge Angle α (°)
75X50X1.2 75 50 3.5 4 30
90X60X1.2 90 60 3.5 4 30
105X70X1.2 105 70 3.5 4 45
110X70X1.5 110 70 3.5 4 45
130X75X1.5 130 75 4 5 60
150X90X2 150 90 4.5 5 60
150X80X2.5 150 80 4.5 5 60

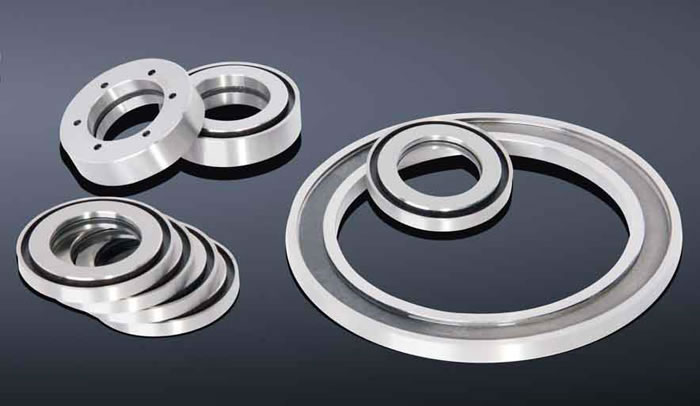

Lower Slitter Blade
The lower slitter blade is generally used in the paper-making industry. Used matching with the movable upper blade, the fixed lower blade can be used to cut plastic packaging materials, packaging cartons, steel sheets, films, leather, wood chips, etc. The choice of materials includes 9CrSi, Cr12MoV, W6Mo5Cr4V2, etc.

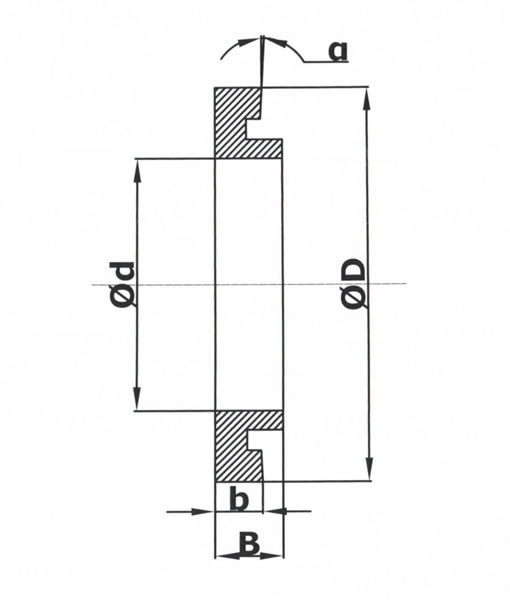

Outer Diameter φD (mm)Width B (mm)Knife Edge b (mm)Inner Diameter φd (mm) Knife-Edge Angle α
60 5 3.5 35 3 º
60 10 8 30 3 º
60 20 18 35 3 º
60 10 8.5 40 3 º
76 5 3.5 45 3 º
70 5 3.5 50.8 3 º
64 10 8.5 35 3 º
77 10 8.5 45 3 º
77 10 8.5 60 3 º
80 5 3.5 60 3 º
80 10 8.5 60 3 º
82 5 3.5 60 3 º
82 10 8.5 60 3 º
105 5 3.5 80 3 º
105 10 8.5 80 3 º
105 5 3.5 90 3 º
130 5 3.5 100 3 º
130 10 8.5 100 3 º
150 5 3.5 80 3 º
150 10 8.5 80 3 º
160 10 6 140 3 º

Knife Holder
The standard knife holder mainly has gland, circlip and self-locking types. It can be matched with shaft 45, 48, 50, 52, 55, 58, 60, 65, 80 mm and blade 105*70*1.2, 118*80*1.2, 130*80*1.2, 140*90*1.2 mm. Non-standard tool holder can be customized according to the client's requirements, and please specify shaft diameter and blade specifications.

Multi-Edge Cutter Ring
The cutter ring with multiple cutting edges is suitable for paper making. It can cut various kraft paper, white paper, newsprint, cigarette paper, etc. is characterized by high precision, sharp edge and durable use. Standard specifications include Ø400xØ374x88, Ø300xØ270x88, Ø280xØ240x92, Ø200xØ165x92, Ø200xØ180x55, Ø152xØ140x50, and Ø114xØ100x40 mm.

Crosscut knife
The crosscut knife is mainly used for the crosscutting of the leather, paper, plastic film, rubber, PP, PVC, copper foil, aluminum foil and other materials. It can achieve smooth incision without burrs and durable use.

Printing Ink Scraper
The ink scraper is a piece of thin blade used to scrape off the excess ink on the surface of the roller equipped in the printing press. With high wear resistance and efficiency, it is able to ensure high printing quality of the paper. It adopts high quality materials which are clean and free of impurities. According to different scraper substrate, the product can be divided into carbon steel, stainless steel, plastic and coating scrapers.

Coater Knife
The coater knife is available in stainless steel, PE, composite material, alloy steel coating and stainless steel coating. Its knife edge has trapezoidal, single-sided, and double-sided types. It is suitable for the coater with an ultra high speed of 400~500m, high speed of 300m/min, medium speed of 200m/min, and low speed of 100m/min.

1. Steel tool thickness: 0.381-6.0mm, coating thickness: 10-150μm
2. Substrate width: 60-150mm, coating width: 6-15mm
3. Length: plane tolerance 0.02mm
4. Knife-edge straightness: ± 0.01mm/1000mm
5. Hardness: substrate HV540-570, coating HV800-1300
6. Blade angle tolerance: α ± 1
8. Unit length: 100M/coil
9. Scraper width: 10mm ~ 100mm
10.Knife thickness: 0.15-1 .4 mm

1. The blade achieves a high intensity adhesion of up to 350-450MPa, causing no peeling phenomenon.
2. It features high wear resistance, with the hardness reaching up to HV550-850. Hence, the service life is 2-10 times as long as the common scraper.
3. It has good self-lubricating performance for friction reduction.
4. This paper making machine knife can bring about low porosity of paper. When the surface coating is 15μm, the paper has no holes.
5. It has a maximum length of up to 200 meters. The thinnest blade comes with a thickness of 0.15mm and width of 10-150mm.

Paper Making Machine Knife

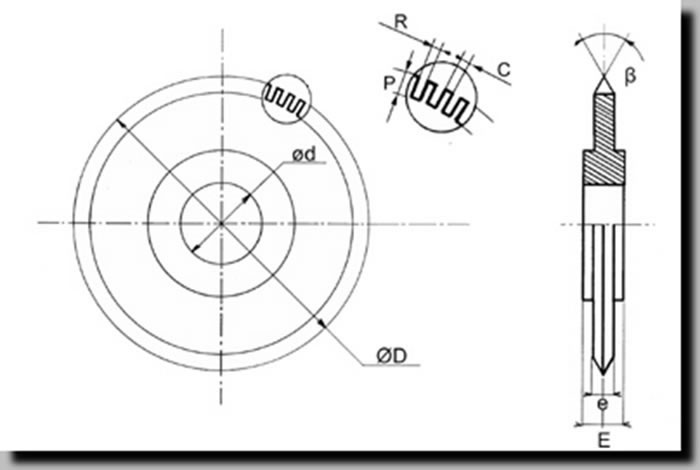

REF Ø D E e ø d β Number of teeth R C P
50 6 19 196 0.4 0.4 0.8
50 6 19 98 0.8 0.8 0.8
76 6.25 19 298 0.4 0.4 0.8
76 6.25 19 149 0.8 0.8 0.8
80 6.25 19 314 0.4 0.4 0.8
80 6.25 19 157 0.8 0.8 0.8

Dashed Knife (Perforation Knife)
Our dashed knife has U, V, oblique V toothed shapes, and is widely used in the making of tissues, napkins, paper handkerchiefs, toilet papers, etc. It effectively solves the cutting difficulty of the perforating machine. The perforation fixed blade and fly cutter matching with the rewinder has reasonable wear resistance ratio. The fixed knife uses CNC machine tools to open teeth, while the parallelism tolerance of fly cutter is controlled within 0.01mm, thus ensuring high perforating accuracy. It also achieves labor saving, smooth incision and other advantages. This type of cutting blade is available in materials such as 9CrSi, Cr12MoV, W6Mo5Cr4V2, W18Cr4V, etc.

Henglida is an experienced paper making machine knife manufacturer and supplier in China. We offer a vast array of products, including corrugated knife, slitter knife, CNC die mold, metal foil cutting blade, and more.
